Rapid impact compactor is a new type of foundation construction machine that uses its special hydraulic hammer technology to impact soft soil foundations. It can be quickly attached to loaders, excavators and crawler lifts. rapid impact compaction machines have good flexibility, controllability and high efficiency. This is a special rapid impact compactor. It adopts numerical control, full hydraulic drive, and the impact energy is adjustable. It can be used for flat, inclined, step and channel impact with depths up to 3-10m.

Features of rapid impact compactor

1) Program control:

The rapid impact compactor can be single impact and PLC impact, as well as energy preset and step preset for single impact and impact energy; it can automatically record PLC impact energy, number and single impact energy, total operating time and number of times. Easy energy control and data acquisition; it can automatically monitor the crash system.

2) Simple and reliable:

Rapid impact compaction can use the hydraulic power of loaders and excavators when no other power is available, and the connection is simple, fast and reliable. Its drive and control system is highly integrated, simple in structure and easy to maintain.

3) Simple and safe:

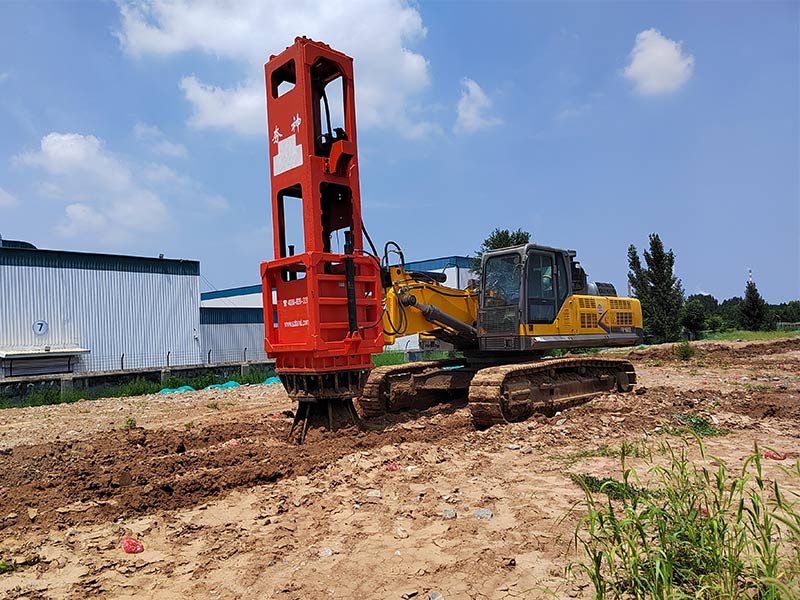

The rapid impact compaction equipment can be directly mounted on loaders, excavators and crawler lifts, with good flexibility, controllability, efficiency and ease of use. Its feet are always in contact with the base, avoiding potential hazards and flying debris during a fall.

Main functions of rapid impact compactor:

Various impact plates, crushers and pile guides can be easily replaced and then combined with loaders, excavators and crawler cranes for impact, crushing and piling.

Construction method of rapid impact compaction contractor

Operation method:

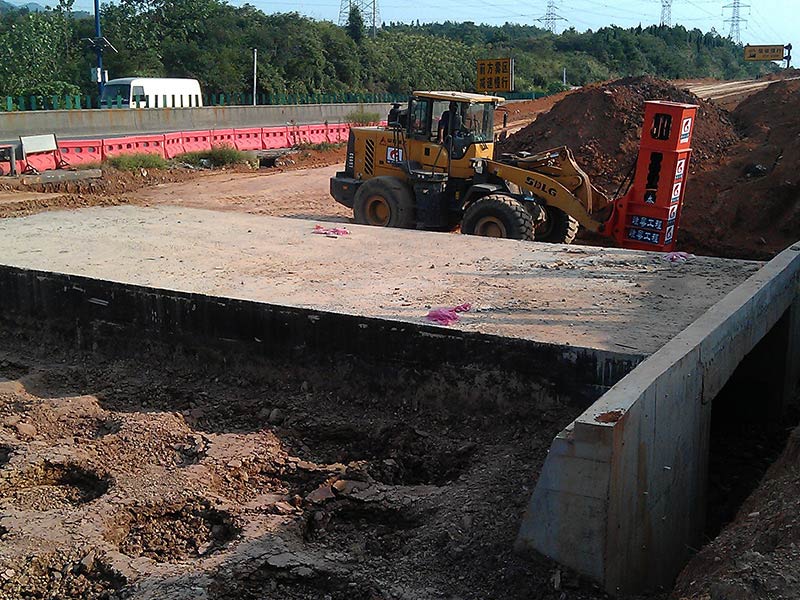

Since the construction location is behind the bridge and culvert, in order to facilitate the walking of the rapid impact compaction contractor, the straight-line operation method should be adopted, that is, every single point of operation, forward or backward to the next point.

Working point layout:

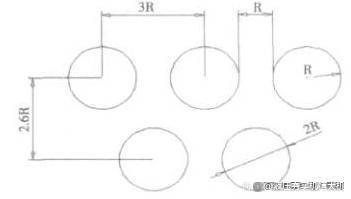

The gap type is suitable for gap type construction. The edges of each compaction point are separated by a certain distance, and the points are arranged in an equilateral triangle, that is, the point distribution method with a distance of 50cm between the edges of each hammer is adopted. According to the experimental parameters, the center of the tamper at the first row of construction points is 80cm away from the structure, that is, the edge of the tamper is 30cm away from the structure, which can ensure the safety of the structure.

Number of working hammers:

According to the previous field test data, the rapid impact compactor has the best compaction effect with three gears and nine hammers. Most of the construction parts adopt the construction technology of the third gear and 9 hammers, and the first row close to the structure adopts the construction technology of the second gear and 9 hammers or 12 hammers.
